HKY9608 Open-Circuit Voltage Tester


1.Products Used: Inter-turn Overvoltage Test of the Current Transformer

(IEC 60044-1 International Standard --- Procedure A)

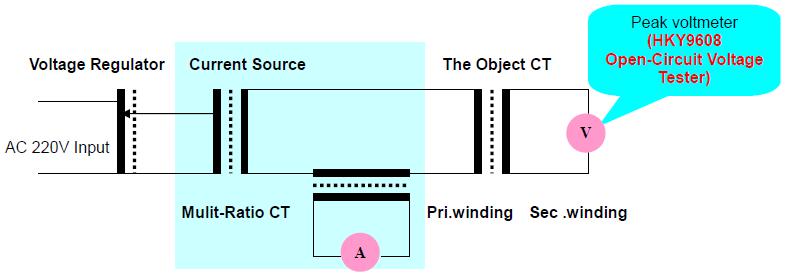

2. Electrical Diagram:

Electrical Diagram

3.Main technical datas:

Power Supply: AC 220V 50Hz
Display Type: Peak voltmeter
Peak Voltmeter: Measure range:AC 2kVAC 10kV
Minimum resolution:0.001kV0.01kV
Accuracy Class:±2%
Sample Ampere Meter: Measure range:AC 0-5.000A
Minimum resolution:1mA
Accuracy Class:±0.5%
Input Impedance: > 30MΩ
Operating Condition: Temperature: 10 ℃~+40 ℃
Relative Humidity (RH): up to 85% (max 90%)
